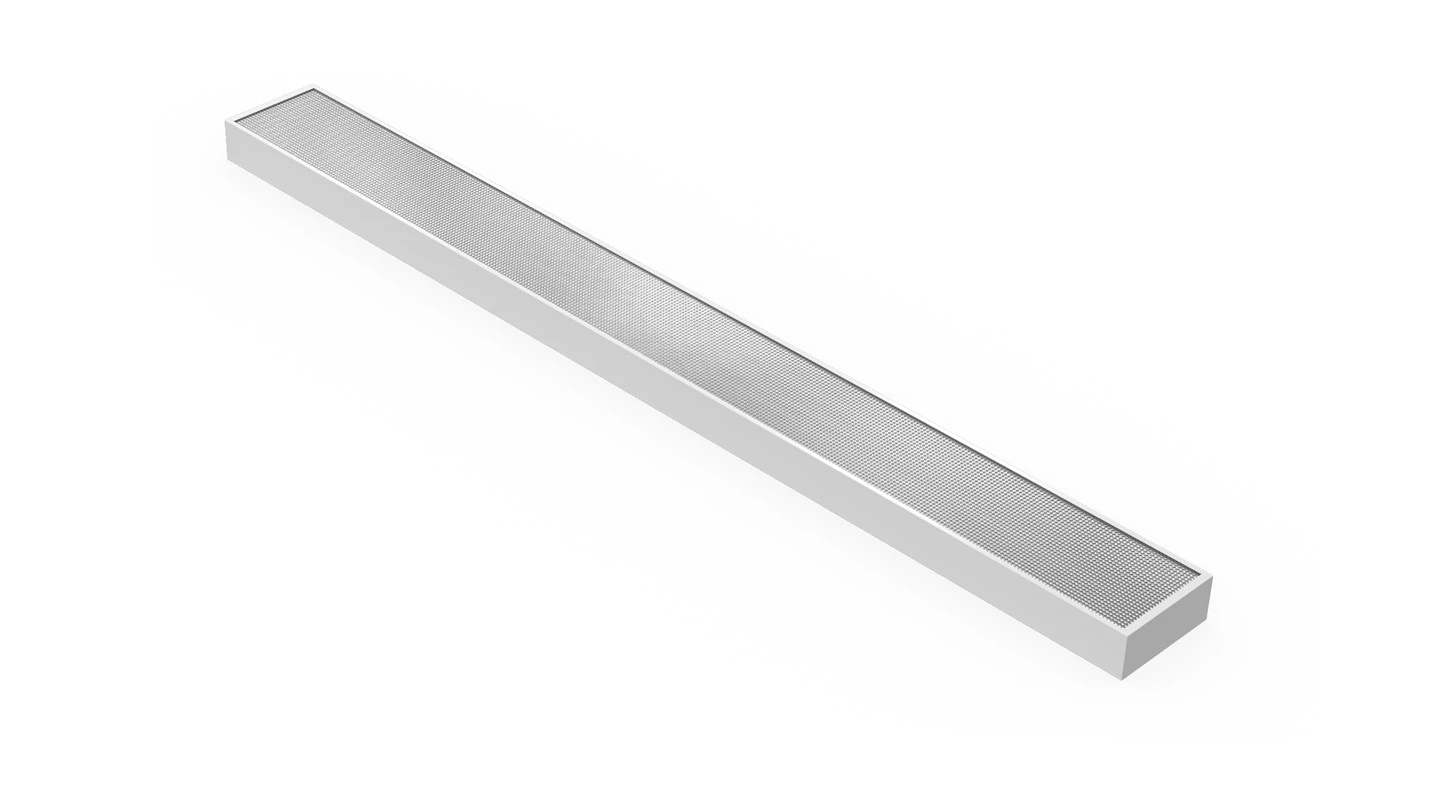

Brighton UGR Batten Light

Brighton UGR Batten Light

Fa'amatalaga:

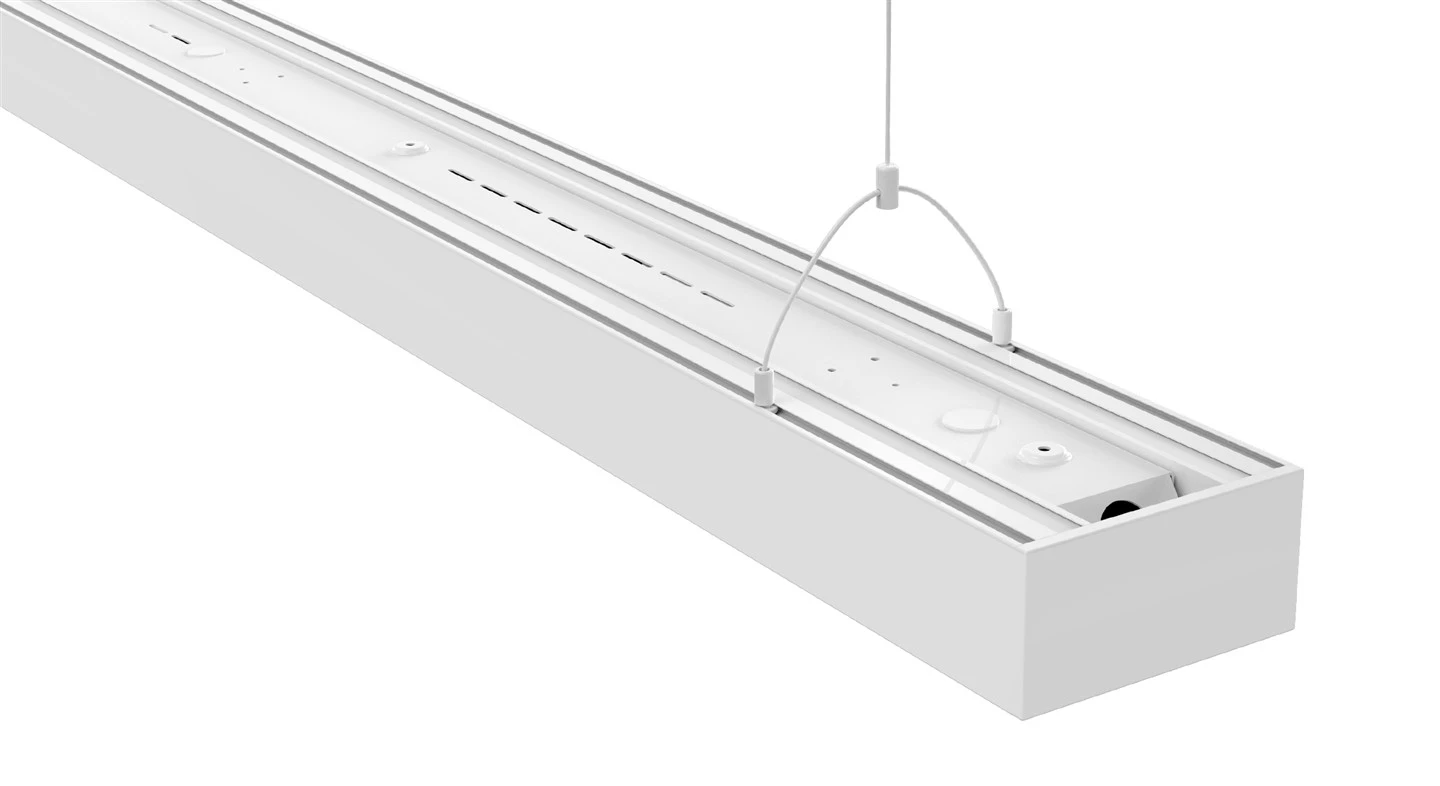

Brighton battens light fixtures o le mamanu sili ona fou, e le gata ina faʻataunuʻuina ai le UGR opitika<19, but also use more costive design solution. Brighton battens lamp use the prismatic diffuser the optical material, and also use high-power LED and secondary lens as the light source. Brighton batten uses a back towed junction box for drivers and components installation,and also, the junction box acts as a installation box for the lighting unit. The Junction box can withstand up to four times weight of the lighting unit, which not only provides effective quality insurance, but also makes the product easy for installation.









Vaega:

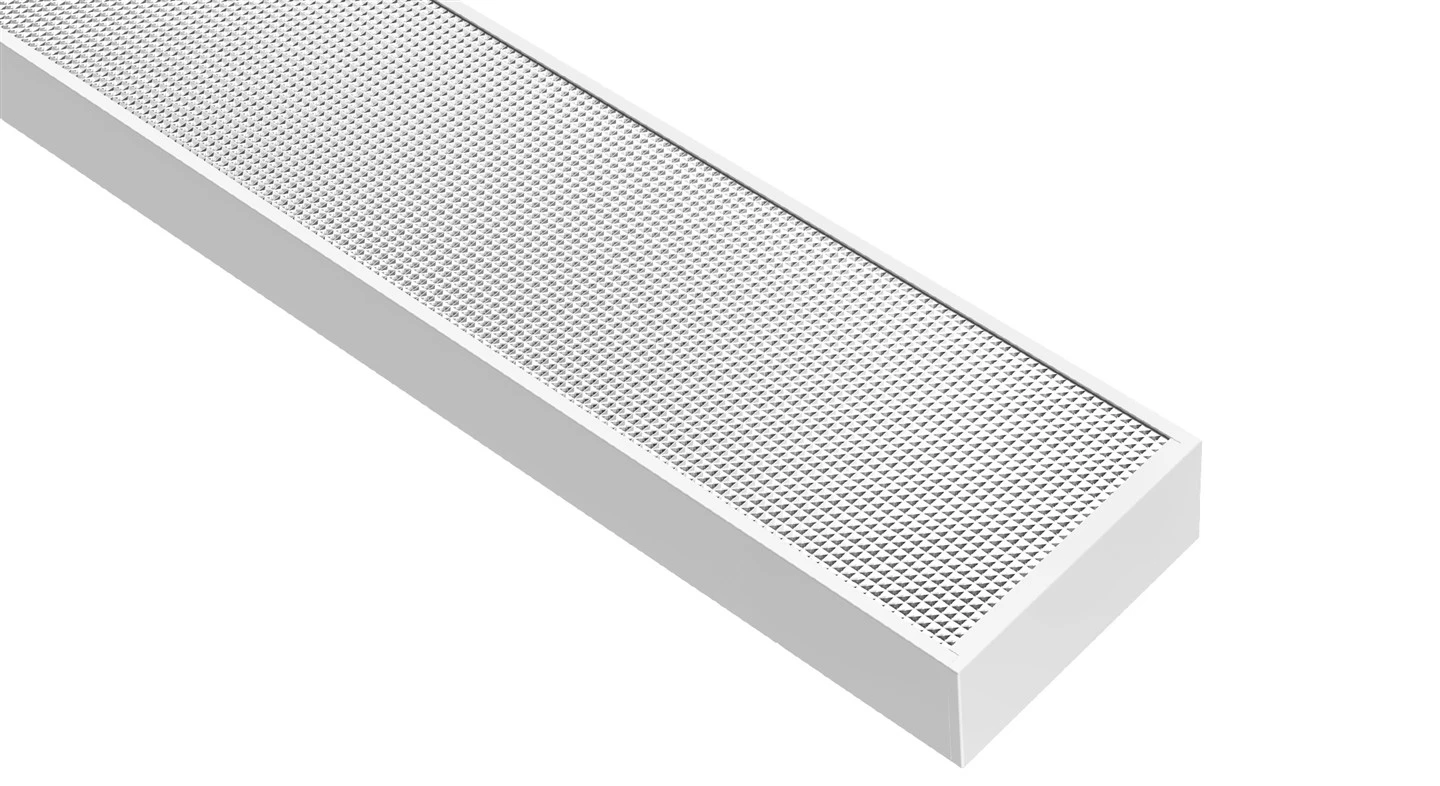

>UGR<19 with prismatic diffuser

>Malosi ma CCT ki le aveta'avale LED

>120mm|150mm lautele avanoa

>Ra80 poʻo Ra90, SDCM<3

>UP moli @ tumau 2X4W e fai ma filifiliga

>Fa'ai'u po'o le pito i tua besa mo le fa'aoga uaea

>Eseese o galuega tauave eseese e fai ma filifiliga

>4ft / 5ft / 6ft fua avanoa

>Fa'amauina / Fa'apipi'i i luga / Fa'apipi'i Fa'amau

>5 tausaga fa'amaonia

Send Inquiry
Download
Description
Technical Parameters

FOLASAGA:

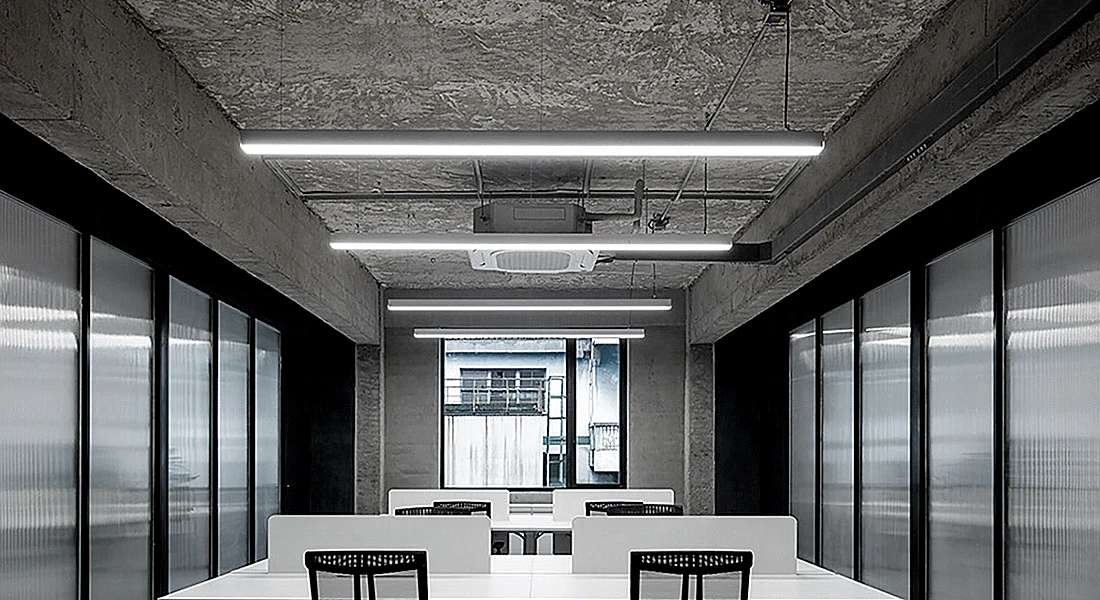

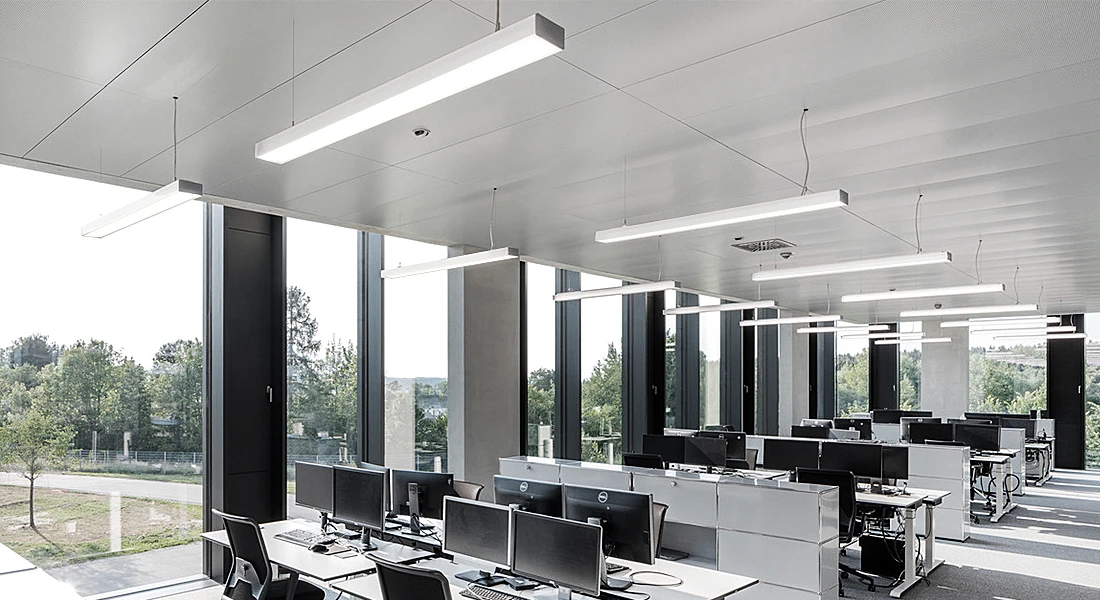

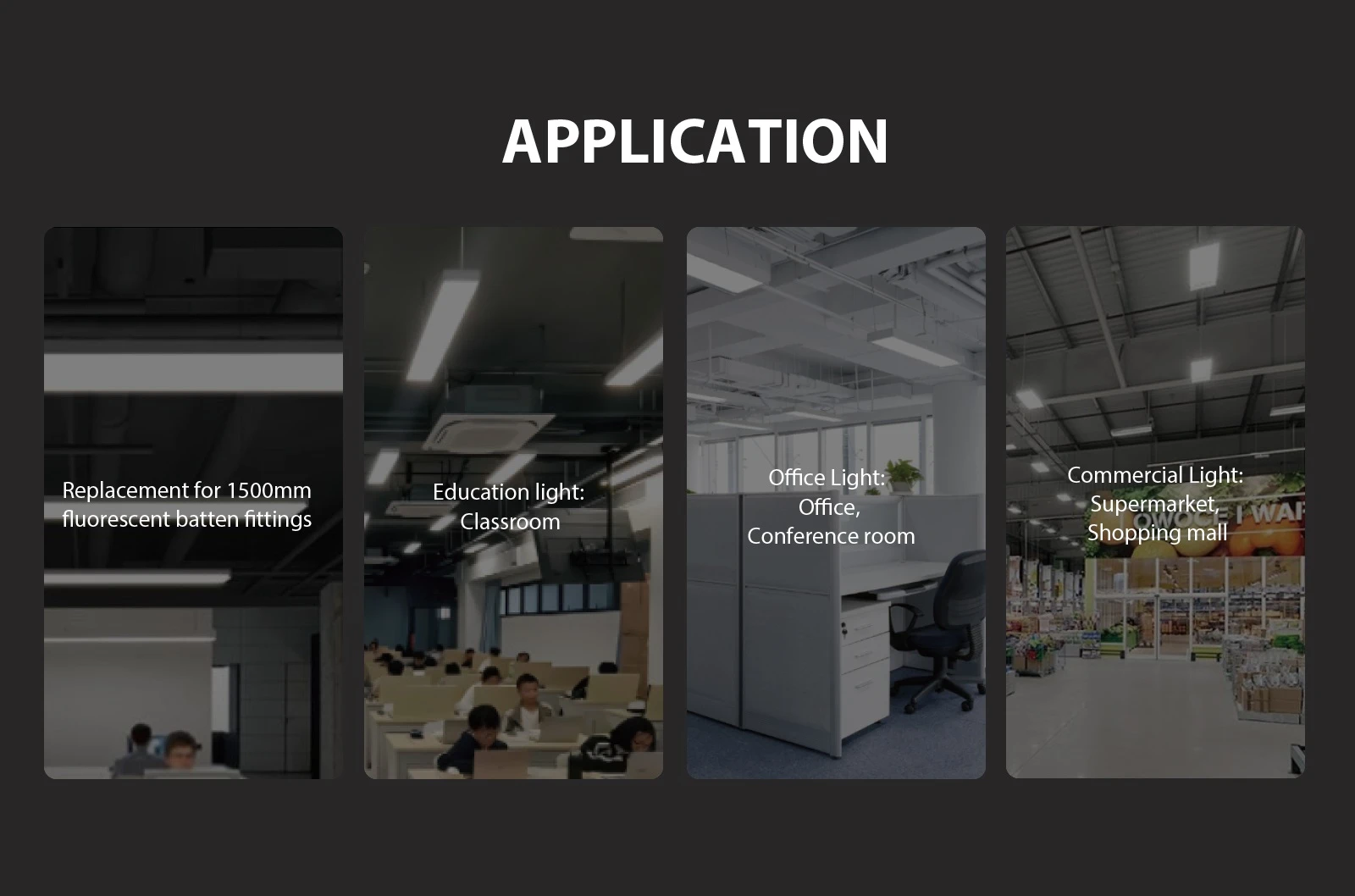

Brighton Batten LED moli e ofoina atu le 120 mm, 150 mm lautele e fai ma filifiliga, UGR<19, and wattage and CCT switches as standard features of strip lights. Brighton battens led light are widely used by customers in office, commercial, education, and other applications.



Meatotino:

Brighton UGR Batten 150mm o le matou moli paʻu fou, faʻainisinia mo le maualuga o le faʻatinoga ma le fetuutuunai. Faatasi ai ma le lautele o le 150mm, o lenei moli e tuʻufaʻatasia faʻatasi i soʻo se avanoa ma e maualalo le susulu (UGR)<19. Its advanced LED driver features a power and CCT switch, allowing you to customize brightness and warmth to suit your needs. Our LED strip lights are perfect for a variety of applications, from office/commercial/industrial to campuses, blending technology with stylish design.



Laiti o Poloaiga

Lautele

Malosi Faatatau

LM/W

Lumen

SDCM/Ra

Watt/CCT
Suiga

Fua o Mea

GW/CTN

QTY/CTN

BT500-04W-DT1-40F01

120mm

20W/40W

fa'ata.130

typ.2600/5200

<3 / Ra80/90

Y

L1200xW120xH60

8.84kg

4pcs

BT500-05W-DT1-50F01

120mm

30/50W

fa'ata.130

typ.3900/6500

<3 / Ra80/90

Y

L1500xW120xH60

11.12kg

4pcs

BT500-06W-DT1-60F01

120mm

30/60W

fa'ata.130

typ.3900/7800

<3 / Ra80/90

Y

L1800xW120xH60

14.52kg

4pcs

BT510-04W-DT1-40F01

150mm

20/40W

fa'ata.130

typ.2600/5200

<3 / Ra80/90

Y

L1200xW150xH60

11.12kg

4pcs

BT510-05W-DT1-50F01

150mm

25/50W

fa'ata.130

typ.3900/6500

<3 / Ra80/90

Y

L1500xW150xH60

13.40kg

4pcs

BT510-06W-DT1-60F01

150mm

30/60W

fa'ata.130

typ.3900/7800

<3 / Ra80/90

Y

L1800xW150xH60

16.80kg

4pcs

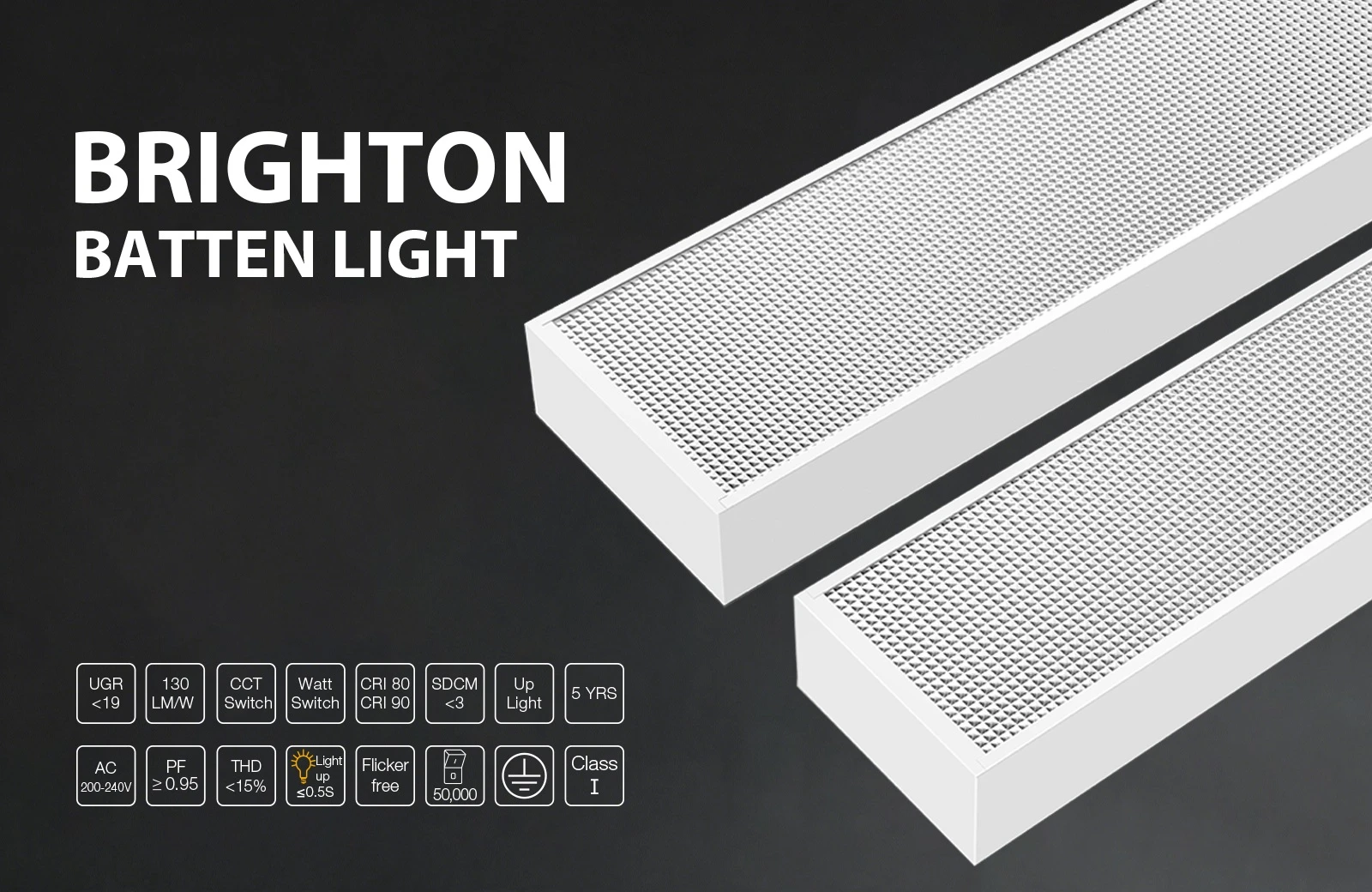

Brighton 01

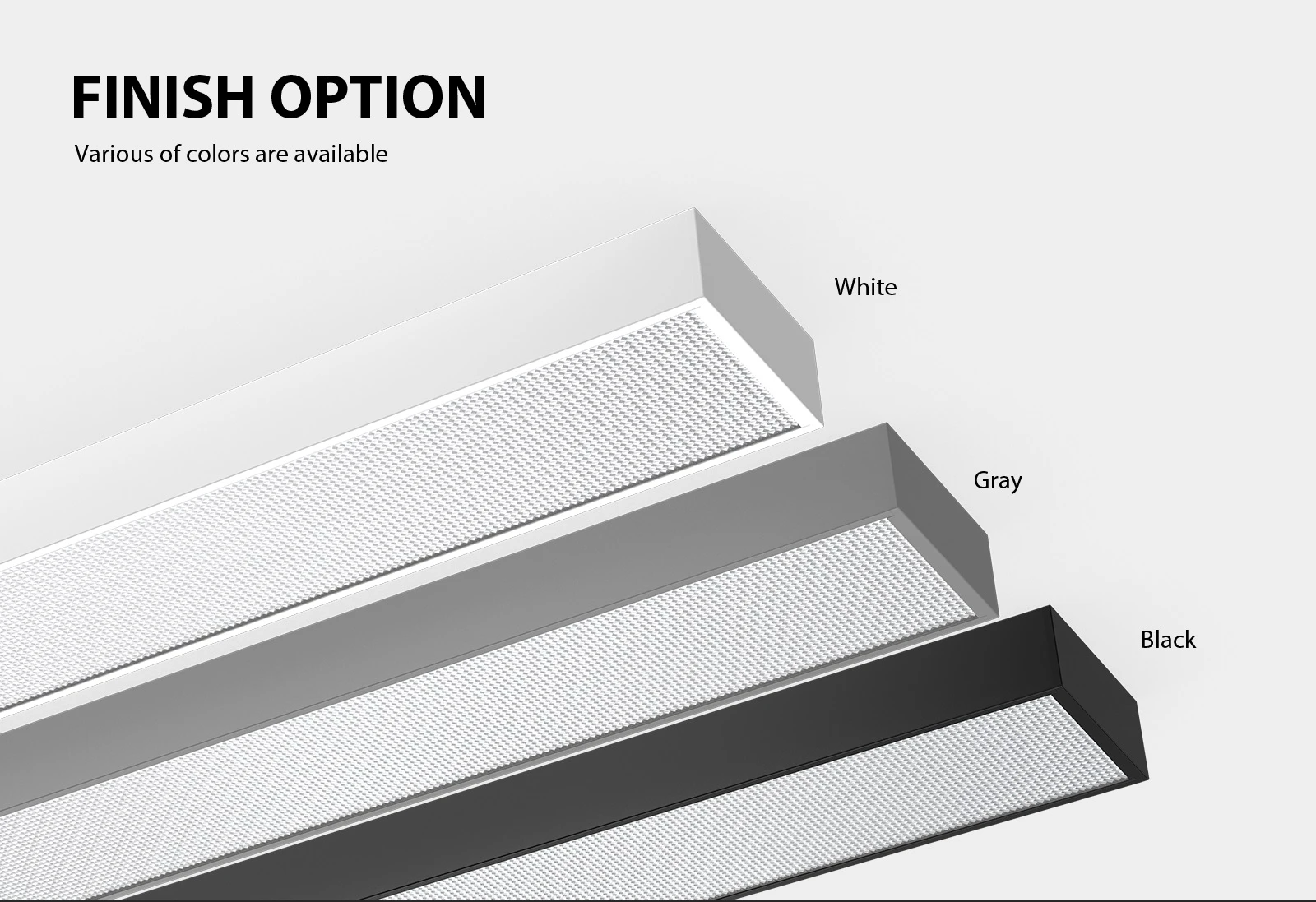

Brighton 02

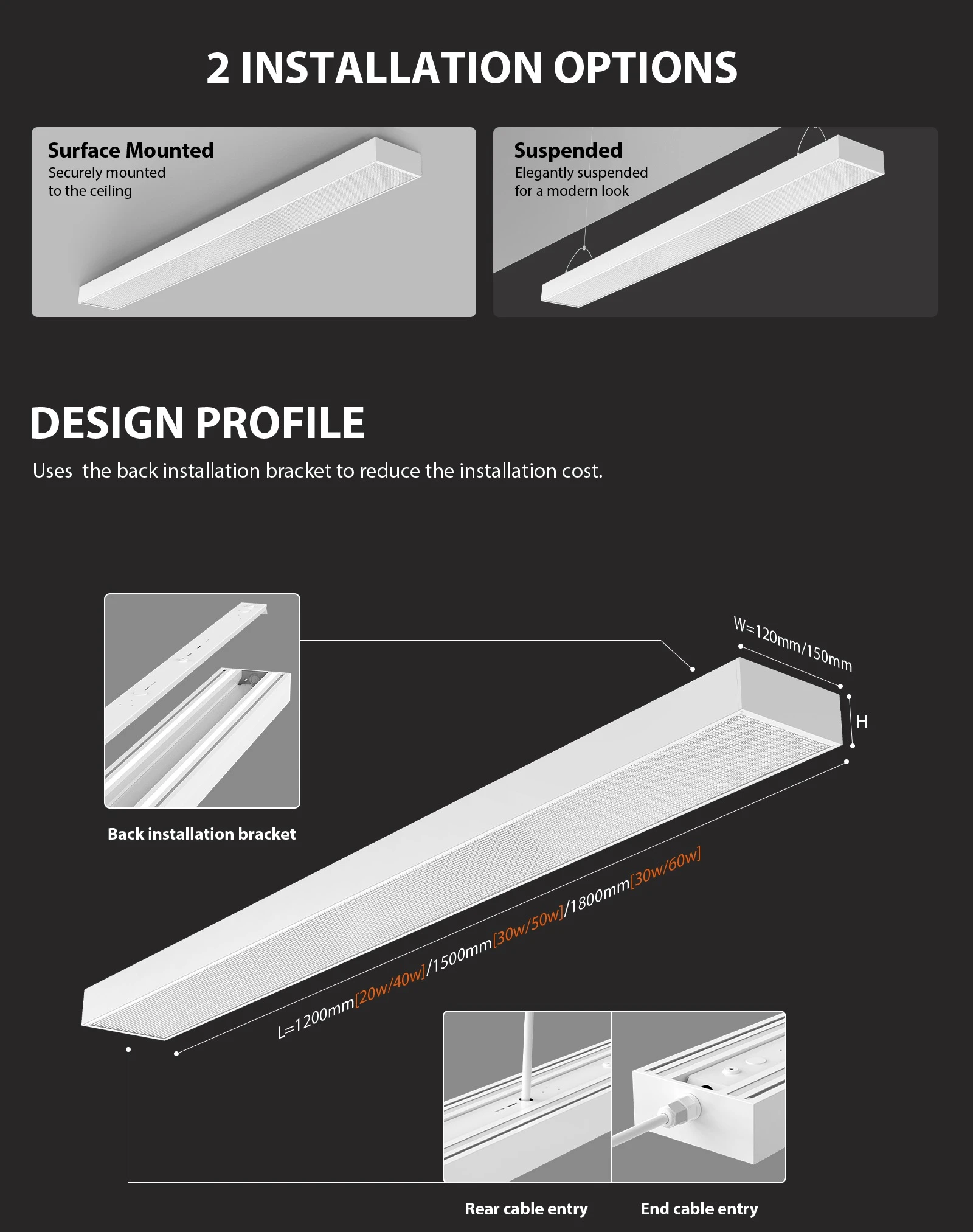

Brighton 03

Brighton 04

Brighton 01

Brighton 02

Brighton 03

Brighton 04
